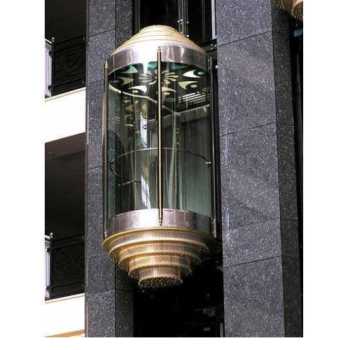

PRODEC : Round Capsule Elevator

Our observation elevator series are widely used nowadays. In hotels, business places and office buildings, you all can see our panoramic elevator silently transporting colorful passengers up and down, adding beautiful sights to buildings. Our lift distincts itself in automatic timing switch and safety device, offering passengers steady moving up and down.

Capacity : 6 to 20 Passeger

Capsule Elevator
Load Car Inside Lift Well Entrance
Person Kgs A B J G C D F H E
8 544 1000 1200 1250 600 2000 1225 1230 1000 800
10 680 1100 1300 1400 650 2200 1325 1330 1100 800
13 884 1200 1400 1550 700 2400 1425 1430 1100 900
16 1088 1300 1500 1700 750 2800 1530 1530 1200 1000
Note :
  • All Dimension are in mm.
  • This is general data, it may be changed without notice, For more detail contact us.
  • All hoist way walls should be minimum 230 mm brick or 150 mm R.C.C.

Three Side Glass Elevator

Three Side Glass Elevator
Load Car Inside Lift Well Entrance
Person Kgs A B G C D F H E
6 408 1000 1200 200 1800 1225 1230 470 700
8 544 1150 1200 200 2000 1380 1350 520 800
10 680 1250 1300 250 2200 1450 1480 580 800
13 884 1400 1400 300 2400 1550 1630 650 900
16 1088 1550 1500 350 2800 180 1650 790 1000
Note :
  • All Dimension are in mm.
  • This is general data, it may be changed without notice, For more detail contact us.
  • All hoist way walls should be minimum 230 mm brick or 150 mm R.C.C.
